Bedini Generator Composite Frame Assembly

Precision Frame for Complete Bedini Generator Systems

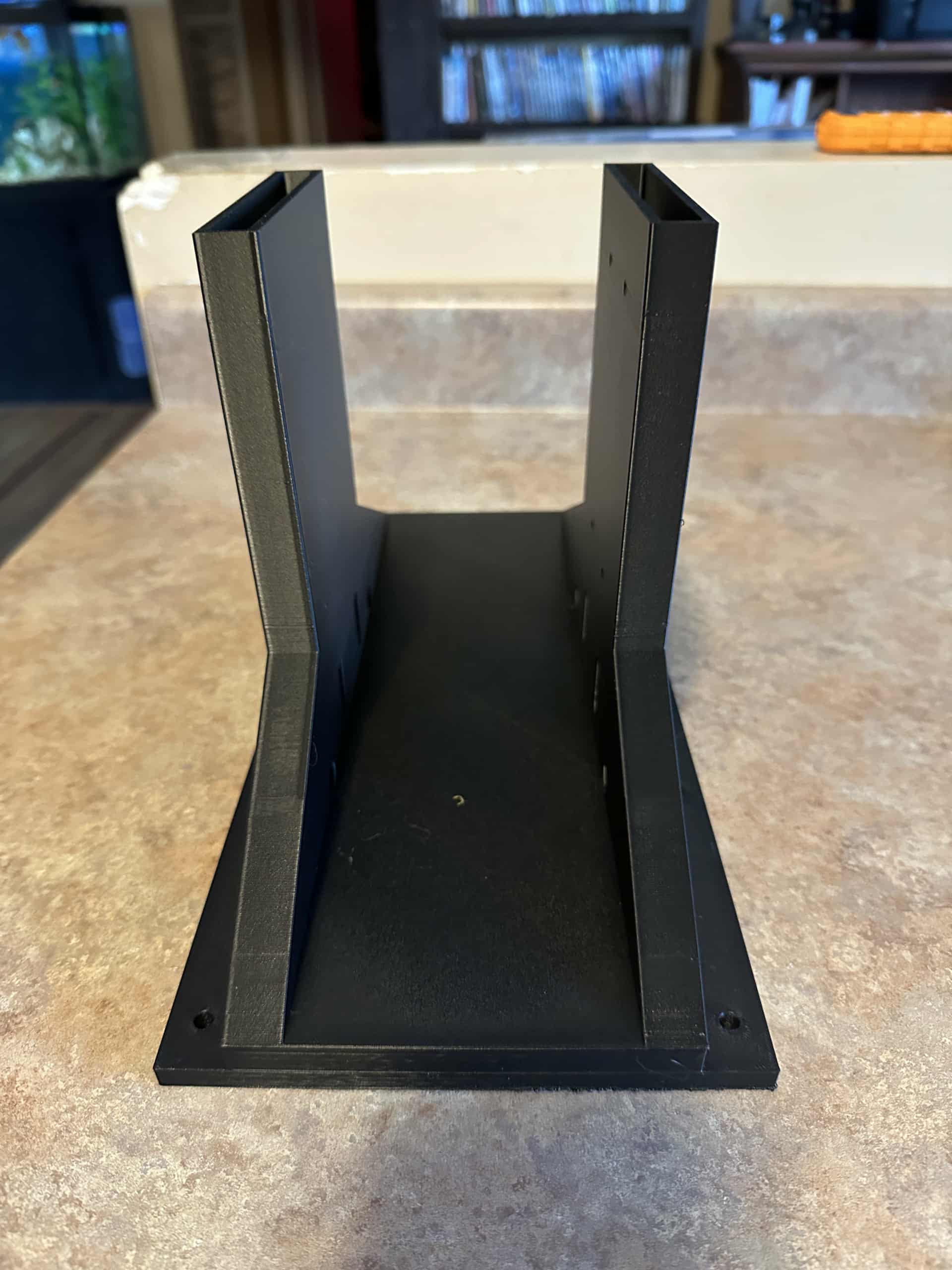

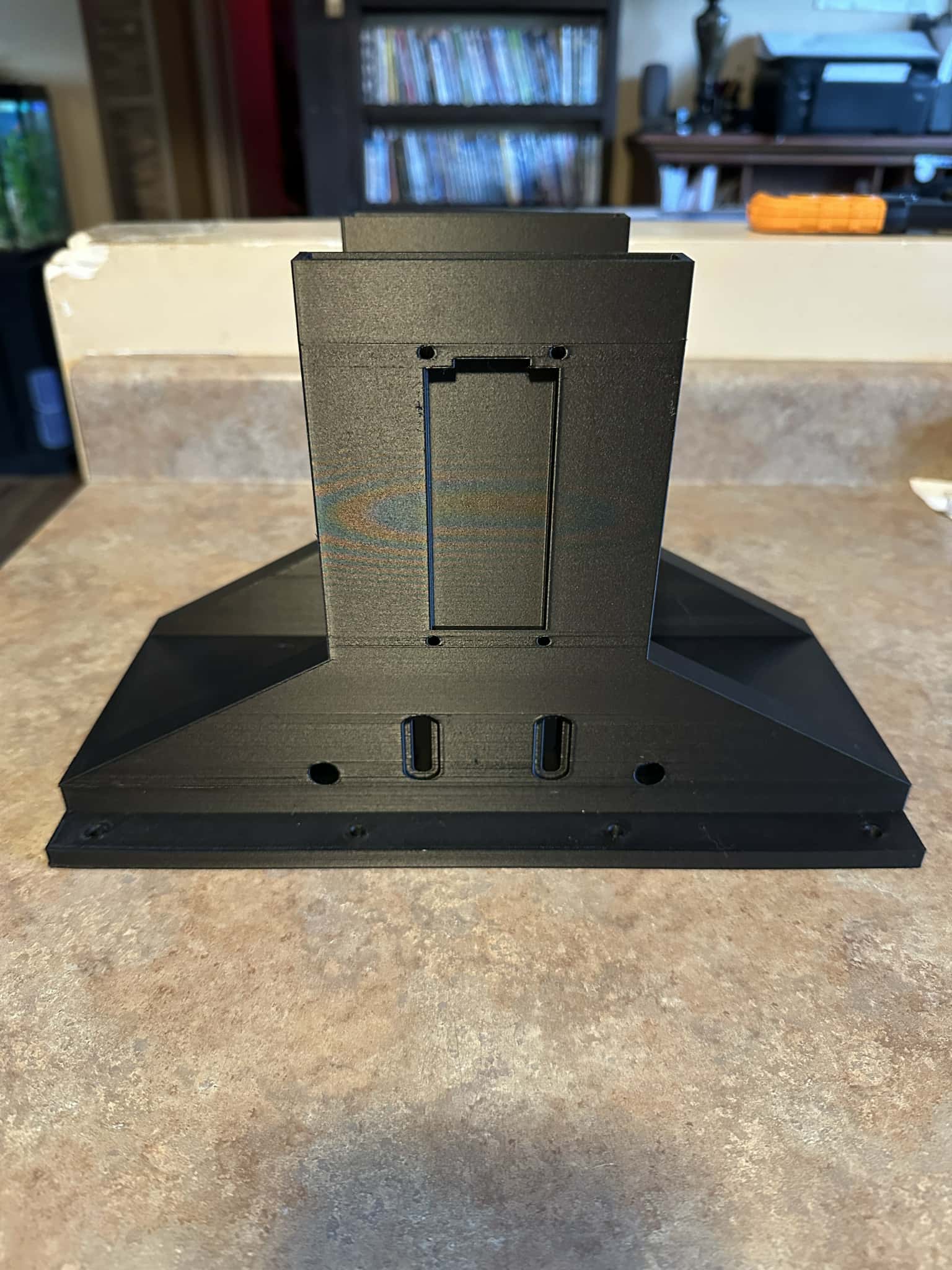

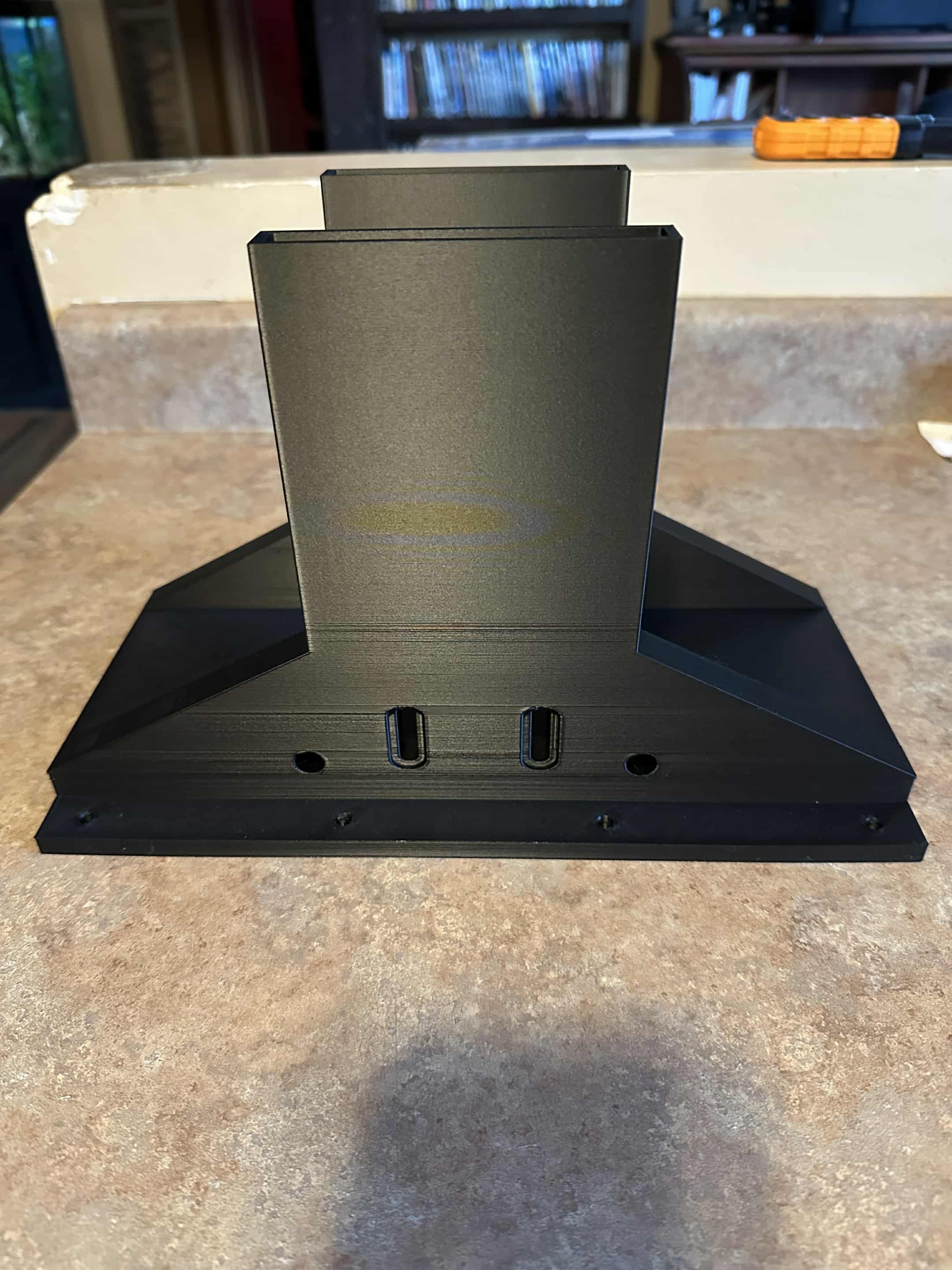

The Southwest Gadget Bedini Generator Composite Frame provides the structural foundation for assembling a complete Bedini Motor Generator. Designed specifically for the Southwest Gadget system, this frame supports the rotor assembly, Bedini control electronics, and master coil while maintaining proper component alignment for testing and operation.

Manufactured from durable 3D-printed composite plastic, the frame offers a lightweight yet rigid platform suitable for prototype development, educational use, and experimental energy research.

Features

Engineered for the Southwest Gadget Bedini Generator system
Supports the rotor assembly with integrated bearing mounts
Includes precision bearings for smooth rotor operation
Includes bearing support structures for proper shaft alignment
Mounting provisions for the Bedini Board and Recovery Board
Designed to interface with the Southwest Gadget Master Bifilar Coil
Durable composite plastic construction
Lightweight, corrosion-resistant, and electrically non-conductive
Clean modular design for easy assembly and maintenance

Designed to Support

The frame is designed to integrate with the following Southwest Gadget components:

Bedini Generator Rotor Assembly
Bedini Board
Recovery Board
Master Bifilar Coil
Rotor Shaft and Bearings

Together, these components form the foundation of a complete Bedini Generator system.

Included

Composite Frame Assembly
Precision rotor bearings
Bearing support housings
Hardware as specified (if applicable)

Applications

Bedini generator experimentation
Educational demonstrations
Prototype development
Experimental pulsed-energy research
Laboratory and hobbyist projects

Construction

The frame is manufactured using high-strength composite plastic through precision additive manufacturing (3D printing). This construction provides excellent dimensional accuracy while remaining lightweight and resistant to corrosion.

Compatibility

Designed for use with Southwest Gadget Bedini Generator components, including:

Bedini Board
Recovery Board
Master Bifilar Coil
Southwest Gadget Rotor Assembly

Important Notice

This frame is intended for use as part of an experimental motor-generator system. Performance depends on proper assembly, tuning, compatible components, and operating conditions. Users are responsible for configuring and testing their systems appropriately.

I would also add a Specifications section below the description (once dimensions are finalized), such as:

Overall Length
Overall Width
Overall Height
Material: Composite Plastic (3D Printed)
Color: Black
Bearings Included: Yes
Compatible Rotor Diameter
Compatible Shaft Diameter
Weight
Made in USA (if applicable)
